CAT5 network assures an easy connection of the several units:
• 6 control lines for PMD digital amplifiers and/or router RT8506-V
and/or integrated voice evacuation system PA8506-V
• 2 redundant lines to connect other CR8506-V in daisy chain (max
6)
• 2 redundant lines for emergency microphone consoles, PMB132
range (max 7)
• 2 lines for call stations PMB range (max 16 with 7 priority levels)

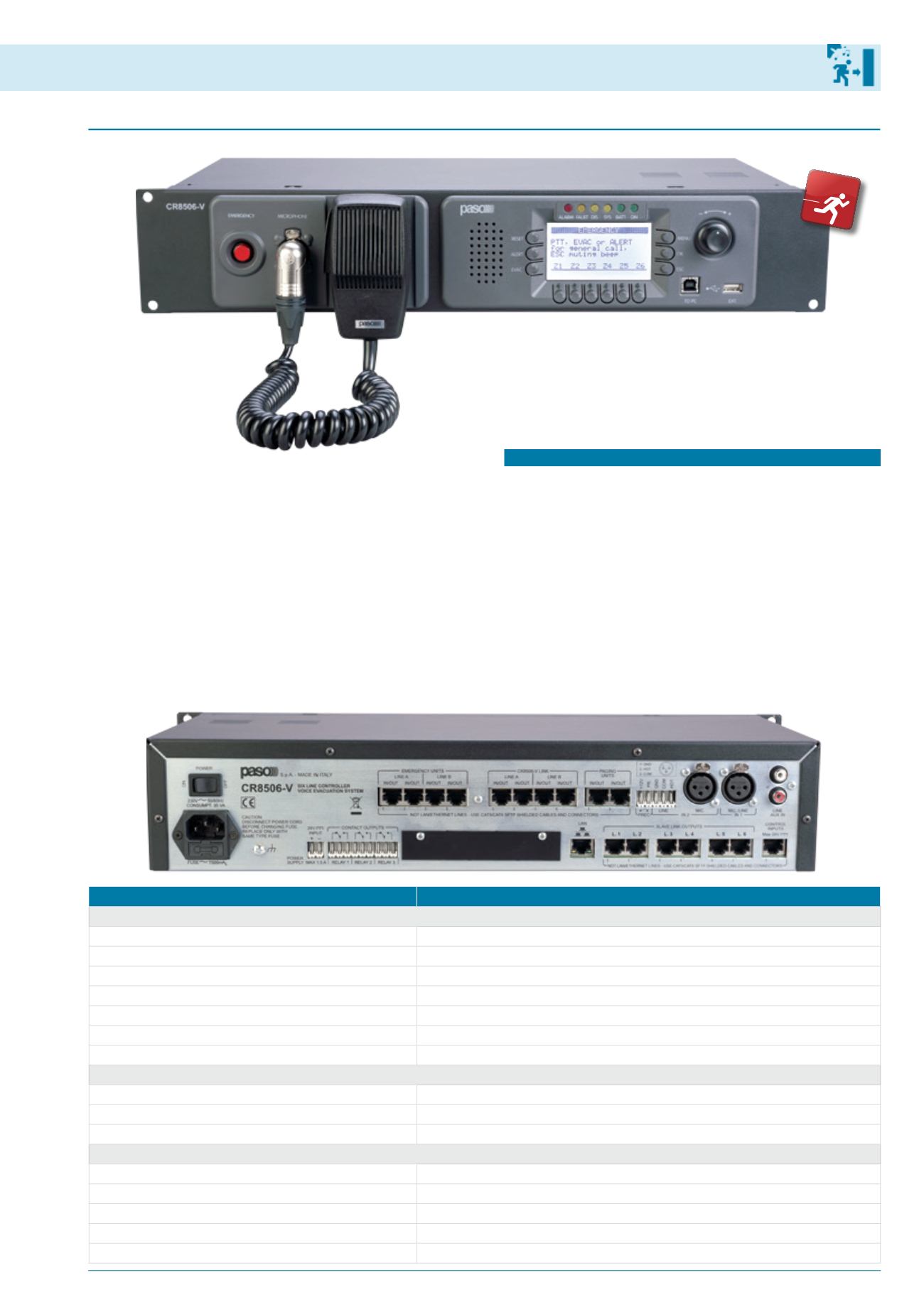

CR8506-V • Controller
functional features
• Controlled emergency microphone
• 2-channel broadcast system
• Built-in message generator to broadcast prerecorded messages
(EVAC and ALERT)
• USB input for background music source
• Back-up power amplifier management
• Secondary emergency power supply input (24 VDC)
• 7 controlled input contacts
• 3 relay outputs
• Graphic display 128x64 pixel monochrome
• Complete diagnostic of system fault events
• Standard rack mounting 19” (2 units)
EN54
16
EN54
24
EN54
16
EN54
24
The controller
CR8506-V
is the heart of PA8500-VES evacuation
system; it has been designed to drive all the supervising functions of
the entire system, in compliance with the current safety standard for
voice evacuation systems. It also manage and controls all the audio
signals (evacuation, alert and standard messages and background
music).
MODEL
CR8506-V
Inputs
USB-EXT.
USB input powered via the front panel –Type A socket
Emergency microphone
Balanced XLR-F on front panel
IN1 MIC (Programmable modes: ON / OFF / Precedence / VOX)
Balanced XLR-F (with activatable 21 V phantom power supply)
IN2 (Programmable modes: ON / OFF / Precedence / VOX)
MIC
: Bilanced XLR-F (with activatable 21 V phantom power supply);
LINE
: Balanced with terminals (HOT-COM-GND)
AUX
RCA stereo socket for source of sound (BGM)
Paging units (2 lines)
2 RJ45 sockets per unit (PA) - PMB106-G, PMB112-G and ACIO8136
EMERGENCY UNITS (2 lines)
4 RJ45 for connection and dedicated emergency microphone station (PMB132 range)
Outputs
SLAVE LINK OUTPUT (6 lines)
6 RJ45 RT8506-V / PMD / PA8506-V unit connections
CR8506-V LINK (2 lines)
4 RJ45 CR8506-V redundant connections
Emergency controls
7 inputs with diagnostics (RJ45) and 3 relays for signalling emergencies and failures, N.O-N.C. terminals
General informations
Mains power supply, consumption
230 Vac 50/60 Hz, 10 W
Vdc secondary power supply, consumption
24 Vdc (min 22 Vdc ÷ max 28Vdc), 0,3 A
19” rack mounting (modular units)
Direct (2U)
Dimensions (W x H x D)
482 x 88 x 220 mm
Weight
4 kg
