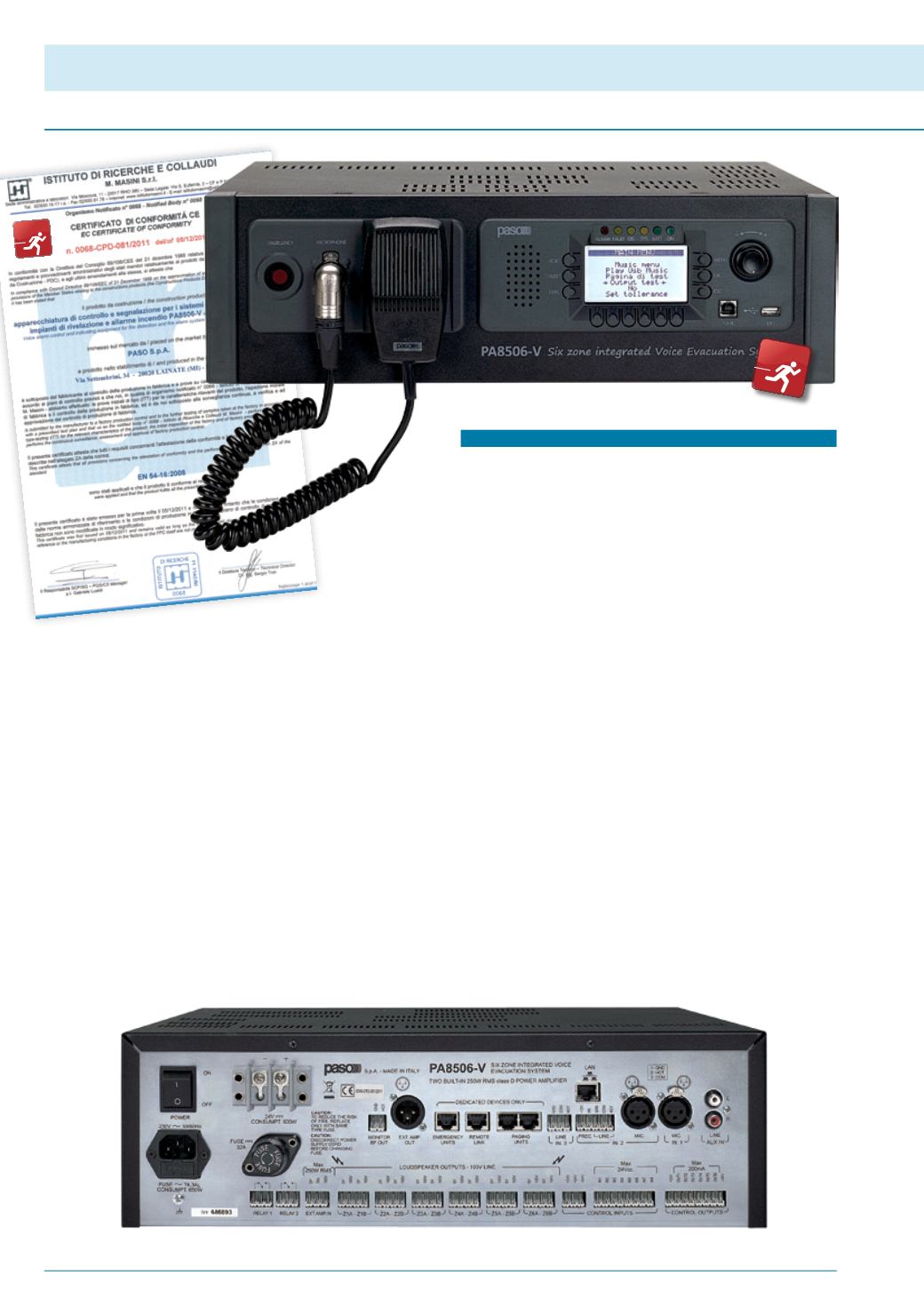

The

PA8506-V

is a

PASO

sound management system, which inte-

grates emergency and general purpose broadcast functions. It enables

background music and general or zone calls without interfering with

its diagnostic routine. It’s designed for easy installation and operation

in a wide range of applications where both emergency voice alarm

systems and public address systems are required, always according

to the voice evacuation safety standards.

It can be possible to connect easily (by simple CAT 5 cable) two main

PA8506-V to create systems of up to 12 zones, for a maximum of

1000W and connect up to 14 emergency microphone units (thanks

to the PMB132 series). The PA8506-V has all the functional featu-

res normally provided by more expensive systems, and it is therefore

characterized by an exceptionally favourable price/performance ratio.

It includes an emergency microphone, two class D power amplifiers,

a message generator and BGM USB input. It provides also 6 zone ou-

tputs, with continuous speaker line monitoring function.

The speaker output section consists of 6 separated lines; each line

has its own internal music level control. Furthermore, each output line

consists of 2 speaker circuits (A & B) in order to guarantee the com-

plete area coverage also in case of one loudspeaker circuit failure. The

front controls and the LCD display allow easy system setup.

Other than paging and music broadcast operations, the PA8506-V

is able to make alarm announcements in emergency situations. Ac-

cording to EN54-16 standard, the built in surveillance function conti-

nuously checks the system for all possible failures. The equipment is

a fully 2-channel broadcast system including 2-built in class D ampli-

fiers (2 x 250 W RMS, one for music and one for speech). Both am-

plifiers are continuously monitored. The music amplifier operates also

as stand-by amplifier: in case of speech amplifier failure, the music

amplifier automatically replaces it.

The PA8506-V can be mounted in a 19” standard rack (3-unit height).

PA8506-V • Integrated Voice Evacuation System

PA8500-VES

|

Voice Evacuation System

EN54

16

EN54

24

EN54

16

EN54

24

main system features

• EN 54-16: 2008 certified (n.

0068-CPD-081/2011

)

• ISO 7240-19 and EN 60849 compliance

• All in one Message/alarm generator, paging, BGM

• Two channel broadcast system

• Up to 12 output zones (using 2 PA8506-V units)

• Music volume control for each zone

• 1000 W maximum total power (complete configuration, 2

PA8506-V units and 2 AW5624 external amplifiers)

• Full digital audio control (DSP)
