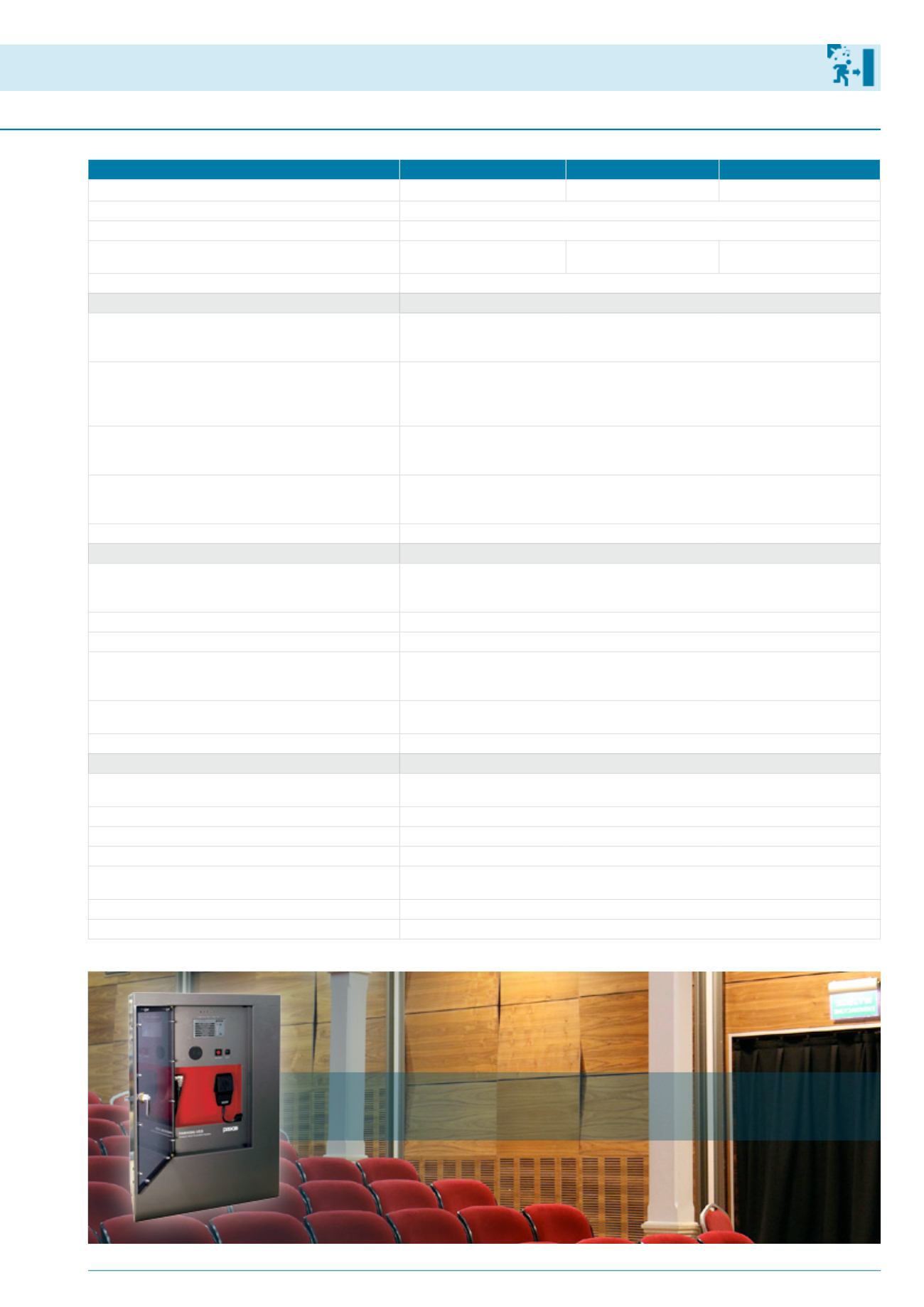

9 / 98
9
MODEL
PAW4502 - V
PAW4504 - V
PAW4506 - V
Number of managed zones
2
4
6
Maximum output power (@230VAC)
500 W RMS - 2 to 6 amplifiers (max 250 W per zone)
Maximum output power (@24VDC)
410 W RMS (205 W RMS per amplifier)
Number of output zones
with double redundant lines (A+B)
2
4
6
Display
4.3” backlit resistive touchscreen (480x272)
Inputs
Emergency microphone
• Sensitivity / Impedance
• Frequency response / S/N ratio
Front panel balanced XLR-F
Signal level 20 mV / 10 kΩ
60 ÷ 20.000 Hz / 72 dB
VOX
Socket (LINE-VOX)
• Sensitivity / Impedance
• Frequency response / S/N ratio
Setting mode: ON/ OFF / VOX with A.P.T.
Balanced terminal strip (HOT-COM-GND)
Signal level: Max 3600 mV / 3 kΩ
90 ÷ 20.000 Hz / 86 dB
AUX
• Sensitivity / Impedance
• Frequency response / S/N ratio
RCA socket for stereo BGM source - Conversion to mono
Signal level: Max 1800 mV / 31 kΩ
60 ÷ 20.000 Hz / 84 dB
Paging units
• Sensitivity / Impedance
• Frequency response / S/N ratio
1 Rj45 for Paging units PMB106-G/PMB112-G
Signal level: Max 1400 mV / 85 kΩ
60 ÷ 20.000 Hz / 83 dB
Emergency units
1 Rj45 for Remote emergency unit
Outputs
Constant voltage outputs
Load impedance
Max 6 zones per 100V line to double line (A/B)
Tot. 12 pairs of terminals, 2.5 mm²
Minimum 40 Ω per zone
BF Monitor
Built-in speaker on front panel 1 W / 8 Ω
Connecting to external devices
Remote links
• Sensitivity / Inputs impedance voice - music
• Output / Channels impedance voice - music
2 Rj45 to connect PAW4500-VES
Signal level: Max 3600 mV / 3 kΩ
1 V / 400 Ω
3 relays, N.O-N.C.-exchange terminals
Programmable for normal or emergency modes
7 diagnostic inputs. Terminals and 24 VDC supply.
Outputs
3 relays, N.O-N.C.- exchange terminals
General
Mains power supply
Max power consumption/applied power
230 V
AC
50/60 Hz
P = 700W/1045 VA (250+250 W load)
24VDC secondary power supply / Absorption
24 VDC (min 22VDC ÷ max 28VDC) / 20 A (200+200 W load)
Secondary internal power supply
EN 54-4 rated charger
Battery compartment
Max 2 batteries 12VDC / 40 Ah
Environmental specification
Temperature: +5°C ÷ +40°C
Relative humidity: 25%-75% without condensation
Rack mounting
Optional brackets for mounting in a 19” rack (14U)
Dimensions
430 x 620 x 240 mm
PAW4500-VES range
