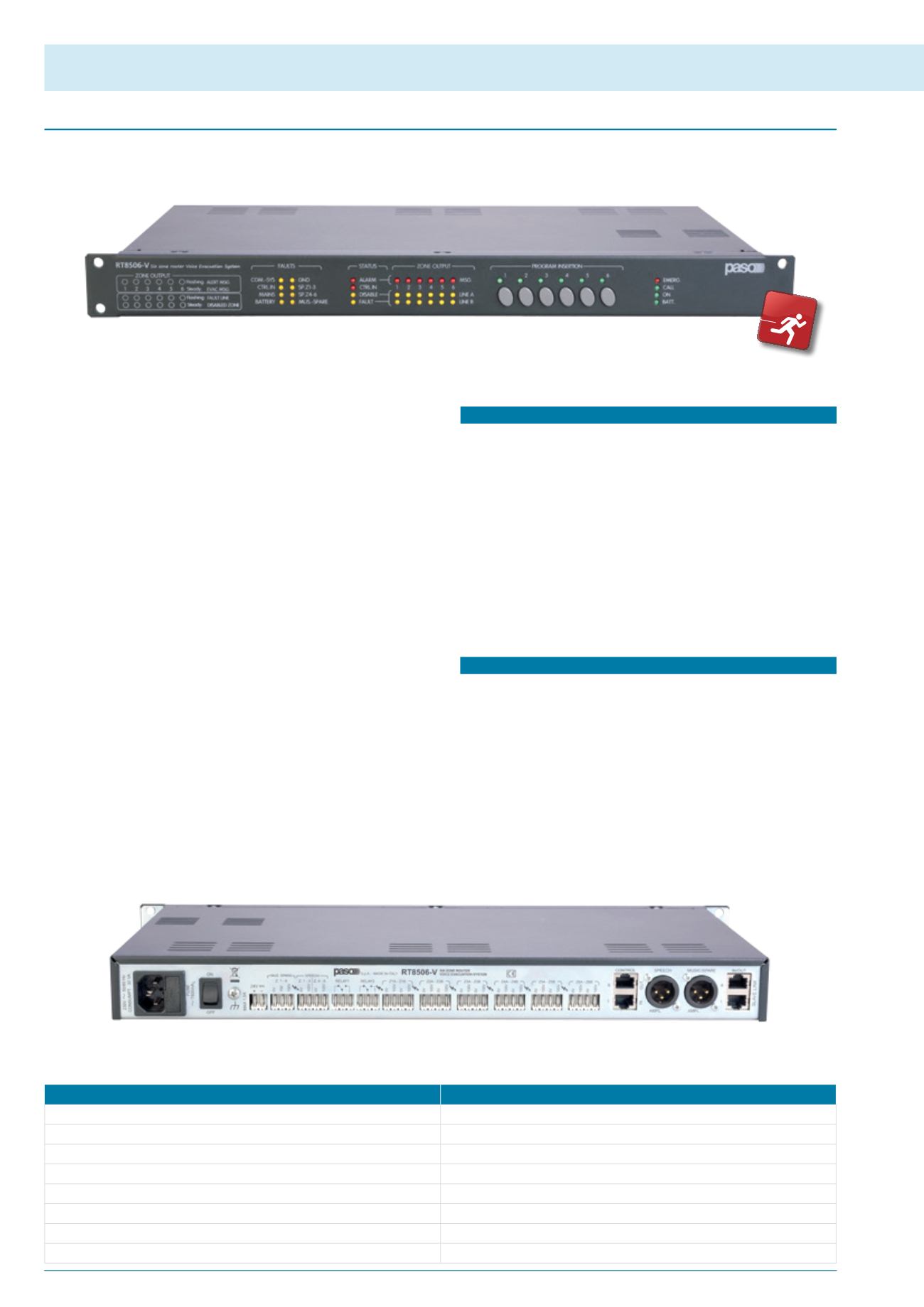

The router
RT8506-V
is the best solution for the sound systems
with a very interesting compromise between price and performance;
connected to a CR8506-V control line, it can drive up to 6 zones
with external power amplifiers (AW5600 range) to a maximum of
1000 W.
Each output line consists of 2 speaker circuits (A & B) in
order to guarantee the complete area coverage also in case of one
loudspeaker circuit failure. The maximum system configuration
includes 6 controllers connected to 36 routers (6 for each
CR8506-V) for a total of 216 zones.
The router can be used with power signals (amplifier 100 V output).
Two different configurations are possible: in the first one you
can connect 2 amplifiers (one for music and one for speech);
in the second one it is possible to manage 2 voice amplifiers (3
zones each) and one music amplifier.
In any case all amplifiers are constantly monitored and the music one
can be also used as backup: in case of a failure it automatically repla-
ces the voice amplifier.
functional features
• 6 loudspeakers zones with double output lines A+B
• Double input 100 V for 1 or 2 voice amplifiers (IN 1 zone 1÷3, IN
2 zone 4÷6)
• 100 V input for music/stand-by amplifier
• Front panel push button to switch on/off the music on each single
zone
• RJ45 socket for CR8506-V connection
• 7 controlled input contacts
• 6 open collector outputs
• 2 relay outputs
• Standard rack mounting 19” (1 unit)
RT8506-V • Router
PA8500-VES
|
Voice Evacuation System
MODEL
RT8506-V
Mains power supply
230 Vac 50/60 Hz
Consumption @230Vac
12 W
Vdc secondary power supply
24 Vdc
Consumption @24Vdc
0,5 A
Maximum power switchable for single zone
500 W
19” rack mounting (modular units)
Direct 19” (1U)
Dimensions (W x H x D)
482 x 44 x 220 mm
Weight
4 Kg
EN54
16
EN54
24
EN54
16
EN54
24
AW5600 RANGE AMPLIFIERS
With the RT8506-V router it is possible to use the certified AW5600
range boosters. Two models are available: one with an output of 240
W (
AW5624
) and the other with an output of 480 W (
AW5648
). The
amplifiers of the AW5600 range are the ideal products for emergency
systems. There is a specific switch on the rear panel for disabling all
the front-panel controls (tone and volume controls), preventing acci-
dental changes to the levels set during commissioning.
For further information about AW5600 range, consult the "Section 2 - Booster Units"
of the catalogue.
