17

MAIN EMERGENCY FEATURES

• Frontal Fireman’s microphone. It works only under Emergency

Manual and has priority over pre recorded messages of an

emergency. The microphone capsule is controlled by the internal

diagnostic system

• Emergency button with LED (red) collected for the activation

of the Emergency Manual mode. Allows access to the system,

with absolute priority, from the “State of Quiet” or during the

Emergency Automatic ongoing, previously activated by external

devices

• Remote emergency microphones units, PMB132 series

• Control and monitoring of the integrity of the critical path (from the

emergency signal sources to the loudspeaker lines)

• Continuous loudspeaker line monitoring (integrity and dispersion

to earth) without interruption of BGM or paging calls

• Two output loudspeaker lines for each zone (A & B)

• Built-in message generator to broadcast prerecorded messages

(EVAC and ALERT)

• Back-up power amplifier management (built-in unit)

• Complete diagnostic of system fault events

• Management of a secondary source of 24 Vdc power with a

battery-charging unit

PA8506-V • technical features

• Two built-in 250 W RMS class D power amplifiers

• External 250 W amplifier to increase power (AW5624)

• Up to 7 remote emergency microphone units (SFTP CAT5 cable)

• Up to 16 paging units, 7 priority levels (SFTP CAT5 cable)

• Balanced microphone input (IN 1) with Phantom power supply and

priority contact

• Balanced microphone or line input (IN 2) with Phantom power

supply (MIC), priority contact or automatic precedence (VOX)

• Balanced line input (IN 3) with automatic precedence (VOX)

• Auxiliary line input for an external music source

• USB input for background music source

• 6 open collector outputs (system status or override to by pass

attenuators)

• 8 programmable and controlled input contacts

• 2 relay outputs for emergency and failure conditions

• Built-in loudspeaker for channel monitoring and acoustic failure

signalling (beep)

• Graphic display 128x64 pixel monochrome, for displaying multiple

windows management

• Multi-function keys and knob help to navigate through the menus

• Emergency zone disabling and Do Not Disturb functions (DND)

MODEL

PA8506-V

Rated output power (230 Vac / 24 Vdc)

250 + 250 W RMS / 160 + 160 W RMS (dual voice and music channel)

Inputs

IN 1

IN 2

IN 3

AUX

Type

Balanced XLR-F (with activatable 21 V phantom power supply)

Balanced with terminals

(HOT-COM-GND)

Unbalanced RCA

Programmable mode

ON / OFF / PRECEDENCE / MIX IN2 ON / OFF / PRECEDENCE / VOX

ON / OFF / VOX

-

Sensitivity / Impedance

Min. 3 mV - Max 100 mV / 1,8 kΩ MIC: Min. 3 mV - Max 100 mV / 1,8 kΩ

LINE: Max 1800 mV / 31 kΩ

Max 3600 mV / 3 kΩ

Max 1800 mV / 31 kΩ

Frequency response / S/N ratio

240 ÷ 20.000 Hz / 63 dB

MIC: 240 ÷ 20.000 Hz / 63 dB

LINE: 60 ÷ 20.000 Hz / 84 dB

90 ÷ 20.000 Hz / 86 dB

60 ÷ 20.000 Hz / 84 dB

Dedicated inputs

Emergency microphone, bilanced XLR - Paging Units (PMB106-G, PMB112-G and ACIO8136), 2 RJ45

Emergency Units, RJ45 - USB-EXT., type A

External amplifier input (EXT. AMP. IN)

Input with terminals 0-70-100 V (max 250 W RMS)

Constant voltage outputs

6 zones for dual-line /A/B) 100 V lines – Tot. 12 pairs of terminals, 2.5 mm

²

Load impedance

Min. 40W for total group of zones 1 to 6

with 250 W external amplifier: Min. 40W for total group of zones 1 to 3 / Min. 40W for total group of zones 4 to 6

External amplifier output

Balanced XLR

Sensitivity / Impedance

1 V / 500 Ω

Frequency response / S/N ratio

40 ÷ 20.000 Hz / 84 dB

Monitor BF OUT

Loudspeaker built into front panel 1 W / 8 W and rear output with terminals (HOT-GND) - 1 V / 400 W

Emergency controls

Programmable to normally open or normally closed states

Type

8 inputs with diagnostics. Terminals and service power supply: 24 Vdc (CONTROL INPUTS)

6 open-drain outputs, max 200mA. Terminals and service power supply: 24 Vdc (CONTROL OUTPUTS)

2 relays for signalling emergencies and failures, N.O-N.C. terminals

Mains power supply

230 Vac 50/60 Hz

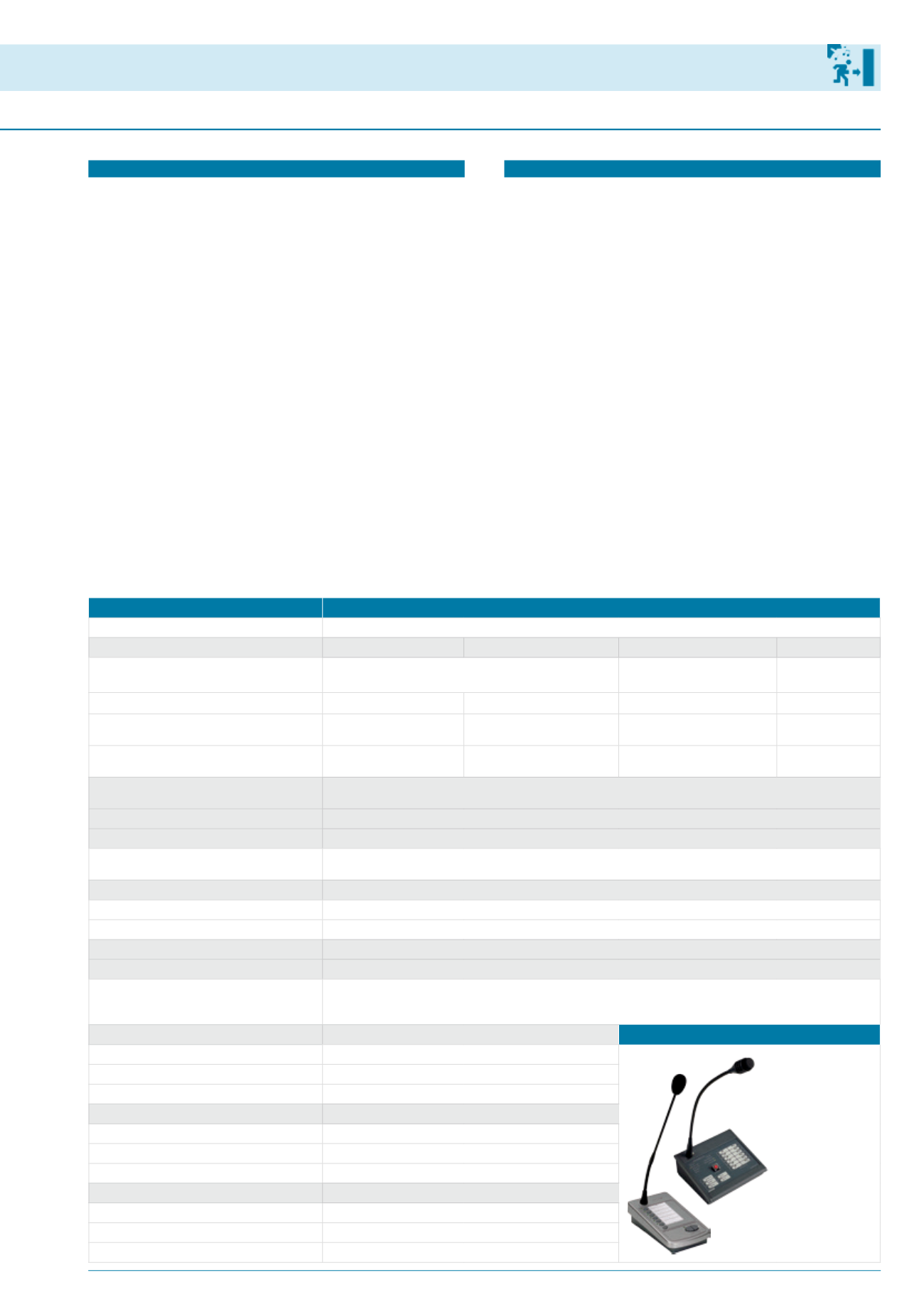

MICROPHONE BASES WITH ZONE SELECTION

Max consumption @ rated output power RMS

(500 W System) P = 650 W/800 VA - (250 W System) P = 370 W/480 VA

Typical consumption with voice signal

(500 W System) P = 160 W/200 VA - (250 W System) P = 90 W/120 VA

Consumption with no signal (test tone only)

P = 30 W/45 VA

Vdc secondary power supply

24 Vdc (min 22 Vdc ÷ max 28 Vdc)

Max consumption @24Vcc (@28Vcc)

500 W System = 17 A (21 A) - 250 W System = 9 A (11 A)

Typical voice signal consumption @24Vcc (@28Vcc)

500 W System = 4,3 A (5 A) - 250 W System = 2,2 A (2,5 A)

Consumption with no signal (test tone only)

0,8 A

Operating environmental conditions

Temperature: +5°C to +40°C - Relative humidity: 25%-75% non-condensing

19” rack mounting

Optional AC8506 brackets (height: 3U + 1U support brackets)

Dimensions (W x H x D)

439 x 132 x 387 mm

Weight

20,5 Kg

To PA8506-V can

be easily and quickly

connected up to 16

microphone paging

units (PMB106-G and

PMB112-G) and up to 7

microphone emergency

units PMB132-V and

PMB132/12-V), which

allow to send messages

either to one or more

zones. The usage of

shielded cables CAT5e

SF/UTP is needful.
