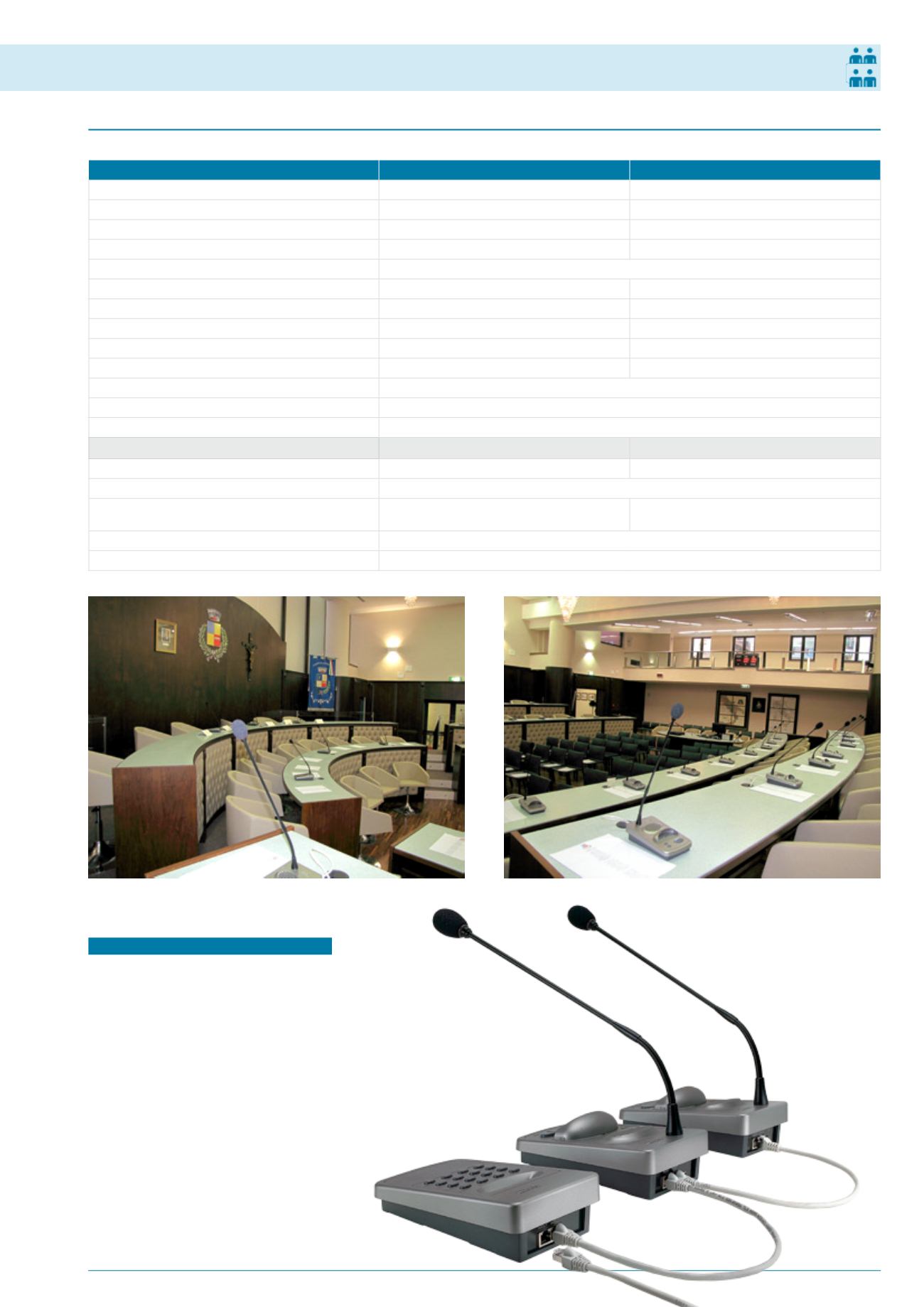

System summary table

CENTRAL CONTROL UNIT SYSTEM

CS2080

CS2100

Conference mode

Only open conference

Manual, Automatic, Open and Voting

Chairman units

1

2

Delegate units

79

98

Chairman unit for open conference

B2080-PG

-

Delegate unit for open conference

B2080-DG

Chairman unit with voting

-

B2100-PG

Delegate unit with voting

-

B2100-DG

Control console unit

-

CL2100-G (min 1, max 4 units)

Management by Personal Computer and dedicated SW

-

RS232 serial line connection with shielded cable

Microphone unit connection lines

4 RJ45

6 RJ45

Maximum overall number of unit for each line

max 20 units per line (max line length from the central unit to the last unit connected: 100 m)

Audio outputs

2 line outputs (for sound broadcasting in the conference hall and for audio recording)

Audio inputs

1 microphone input and 2 line inputs (tape and aux)

ACCESSORIES

CS2080

CS2100

Conference-hall display panel

-

CT2001 (max 4)

Fixing mounting kit for microphone units

AC700

Remote interface to connect a PC with dedicated SW

-

CSIF2100, to connect a Personal Computer at the network

of the microphone units of the system

Cables with RJ45 connectors

CV2002 (2 m), CV2005 (5 m), CV2010 (10 m)

100 m roll cable

31/142-100, CAT5e SF/UTP shielded cable, 100 m roll

EASY CAT5 CONNECTION

One of the strong points of the PASO CS2000

system is the extreme simplicity with which it

is installed and connected up. A single cable

distributes power, data and the audio signal.

Each station has a double RJ45 socket (IN-

OUT) on the rear panel to enable easy casca-

de connection using

CAT5

shielded cables.

There are no constraints of any kind in terms

of the physical positions of the stations within

the systems. The Delegate and Chairpersons

Stations, the conference hall display and the

interface for connecting a remote PC can be

positioned anywhere in the network connec-

ting them to the central control unit.
