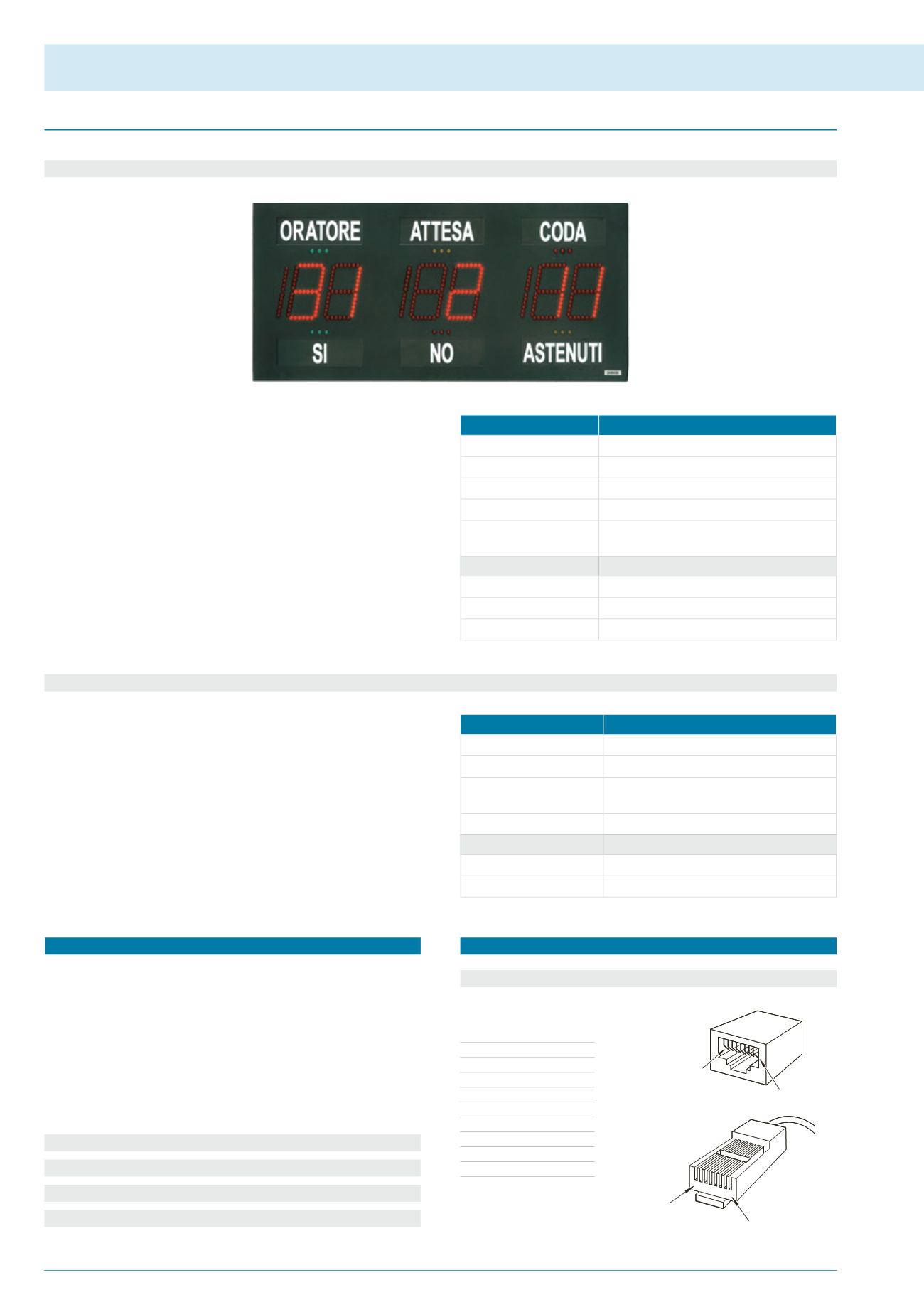

CS2000
|
Conference systems
System accessories
Connecting cables
The connecting cables are not included in the supply of the stations
and must be purchased separately, choosing from among the various
available lengths: codes
CV2002
(length 2 m),
CV2005
(length 5
m) and
CV2010
(length 10m). It is possible to make connections of
lengths other than these using only
31/142-100
type cable, available
in 100-m bundles. All the connectors must be RJ45 connectors of
the shielded type and the connecting cables must be CAT5e SF/UTP
cables.
CS2000 system connections
The conference-hall display shows the delegates and the public the
main information concerning the conference being held. At the end
of a voting session, it indicates the total number of people voting Yes,
number voting No and number Abstaining. During the discussion
(except in the case of 'OPEN' conferences), it shows the ID number
of the microphone of the speaker that is currently enabled to speak,
that of the next speaker in the queue and the total number of speakers
queued to speak. The
CT2001
is an alphanumeric display with fixed
fields and showing interchangeable texts. It has two RJ45 (IN/OUT)
sockets for direct connection to the control unit or cascade connection
to the other stations (using shielded CAT5e SF/UTP cable). With the
CS2100 system it is possible to install up to four CT2001 units.
CSIF2100
Remote interface to connect a PC
MODEL
CT2001
Panel type
3 fixed fields, 2 ½ digits each field
Lamps
Red LEDs
Suitable central control unit
CS2100
Connecting plugs
2 RJ45
System connecting cables
CV20xx cables with RJ45 connectors or 31/142-100
(CAT5e SF/UTP shielded cable, 100 m roll)
Mains power supply
230 Vac - 50/60 Hz
Dimensions (W x H x D)
1050 x 500 x 40 mm
Mounting
Wall mounting (accessories non included)
Weight
20 kg
CV2002
CAT5e SF/UTP shielded cable, 2 m, RJ45 connectors
CV2005
CAT5e SF/UTP shielded cable, 5 m, RJ45 connectors
CV2010
CAT5e SF/UTP shielded cable, 10 m, RJ45 connectors
31/142-100
CAT5e SF/UTP shielded cable, 100 m roll
MODEL
CSIF2100
Suitable central control unit
CS2100
Connecting plugs
2 RJ45
System connecting cables
CV20xx cables with RJ45 connectors or 31/142
(CAT5e SF/UTP shielded cable, 100 m roll)
Serial data output
RS232, DB9
Mounting
Metal housing with screw fixing
Dimensions (W x H x D)
136 x 26,5 x 95 mm
Weight
400 g
Unit input (RJ45)
Pin
Description
1
Audio +
2
Audio -
3 GND
4
AP line –
5
AP line +
6 + Vdc
7
Serial line +
8
Serial line -
Shield GND
CT2001
Conference-hall display panel
The
CSIF2100
interface can be used to connect a Personal Computer
loaded with the control software at any point of the network connec-
ting the microphone stations of the CS2100 system. It has a double
RJ45 (IN/OUT) socket for direct connection to the control unit or ca-
scade connection to the other stations (using shielded CAT5e SF/UTP
cable). There is a DB9 socket enabling an RS232 serial link to the
personal computer. All the electronics are contained in a small metal
box screwed to the unit. The circuit board is powered directly from the
network connecting the system to the control unit.
1 2 3 4 5 6 7 8
Pin 1
Pin 8
8 7 6 5 4 3 2 1
Pin 8
Pin 1
All the connectors must be shielded RJ45 type
