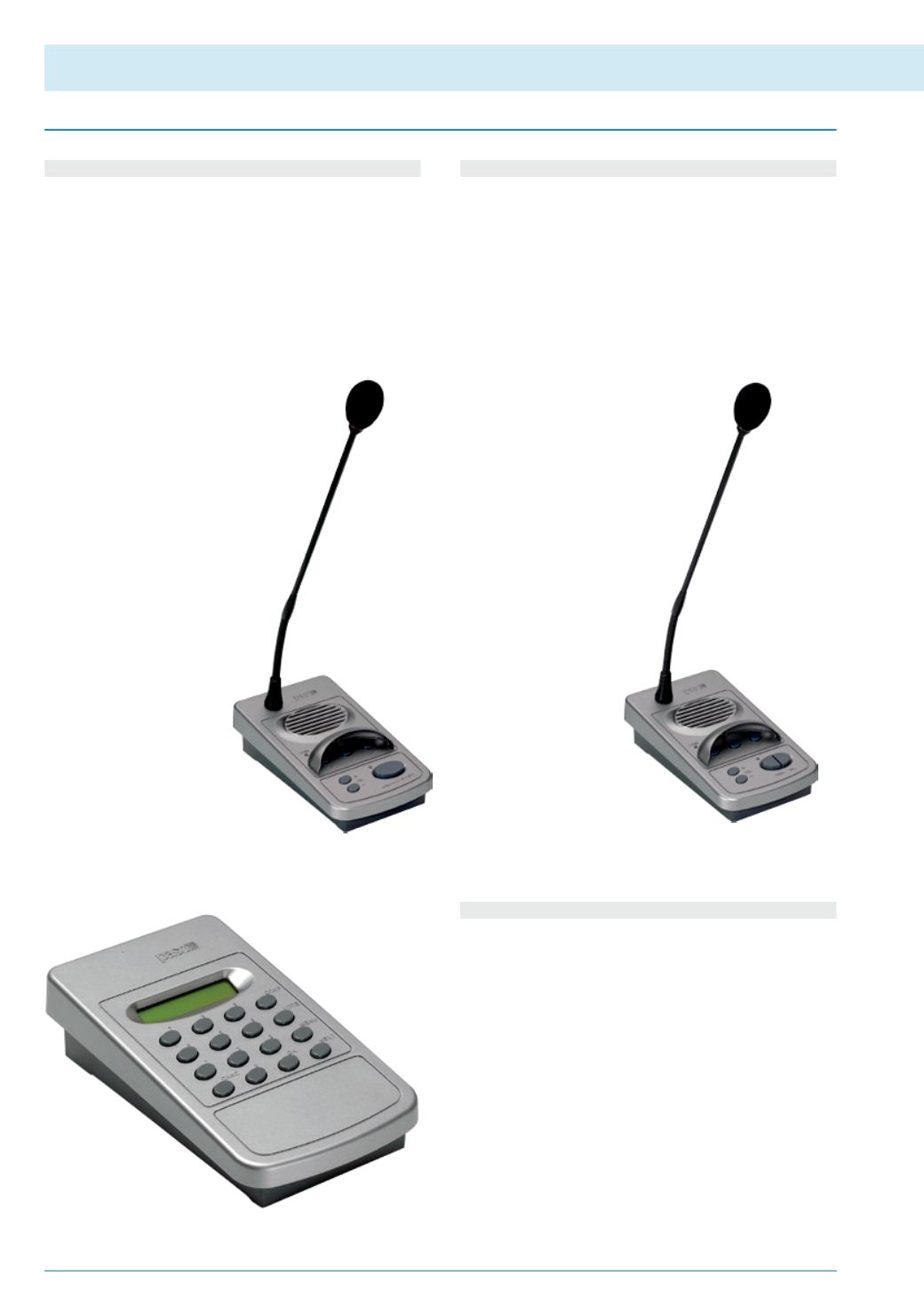

CL2100-G

Control console unit

The CS2100 control unit for configuring the system and performing

the various control activities requires at least one

CL2100-G

console

(up to a maximum of four can be installed). This unit enables program-

ming and complete management of the discussion, of voting and, if

required, activation of a speaker's station (B2100-DG and/or B2080-

DG) without queuing. The backlit LCD display shows the statuses of

the microphones (ID number of the currently active microphone, of

the next one in the queue and number of speakers queued to speak)

and the result of the voting (total number of people voting Yes, number

voting No and number Abstaining). There is a double RJ45 socket (IN/

OUT) for direct connection to the control unit or for cascade connec-

tion to the other stations. The console has all the controls needed for

easy and immediate use (numerical 0-9 keypad, key for selecting the

conference mode, key for starting/ending the voting, key for continu-

ing the discussion, menu key for selecting the language, selecting the

length of the contributions in the automatic mode and selecting the

service functions).

B2100-DG

Delegate unit with voting

B2100-DG

stations enable delegates both to take part in the discus-

sion and to express their votes. With three possible choices: 'Yes',

'Abstained' or 'No'. Discretion during the voting is ensured by a co-

ver protecting the three voting keys. Special signalling lamps indicate

the following statuses: queued to speak, enabled to speak, timeout

and voting accomplished. Each unit is supplied with its own cardioid

electret microphone mounted on a 43-cm long flexible stem and a

ring that lights up to indicate that it has been activated. Each station

also has a push-button for requesting to speak, a built-in loudspeaker

that is automatically excluded

when the station is active and a

volume control. Delegates can

also listen to the discussion via

headphones or earpieces to be

connected to the sockets pro-

vided for this purpose (3.5 mm

jack). As soon as a jack is con-

nected, the built-in loudspeaker

is muted. A double RJ45 socket

(IN/OUT) on the rear panel ena-

bles cascade connection to the

other stations or to the control

unit, using CAT5e SF/UTP shiel-

ded cable.

B2100-PG

Chairman unit with voting

Each

B2100-PG

unit has the same features described above for

B2100-DG delegate stations, plus the possibility, using the double key,

to join in a conversation or to activate the Priority function. The Prio-

rity control excludes off all the other microphones. Like the Delegate

Stations, the Chairman's station also enables voting, with a choice

between three possibilities: 'Yes', 'Abstained' or 'No'. Each unit is sup-

plied with its own cardioid electret microphone mounted on a 43-cm

long flexible stem and a ring that lights up to indicate that it has been

activated. Each unit also has a push-button for requesting to speak,

a built-in loudspeaker that

is automatically excluded

when the station is active

and a volume control. The

chairperson can also listen

to the discussion via a he-

adphone or an earpiece to

be connected to the socket

provided for this purpose

(3.5 mm jack). As soon as

the jack is connected, the

built-in loudspeaker is mu-

ted. A double RJ45 socket

(IN/OUT) on the rear panel

enables cascade connec-

tion to the other stations

or to the control unit, using

CAT5e SF/UTP shielded ca-

ble.

CS2000

|

Conference systems

Conference and voting units
