MODEL
DMX8008
Audio
Analog inputs
8 electronically balanced ( Mic - Line - Unbalanced )
Analog outputs
8 electronically balanced
Input level
Line: +14 dBu; Mic: -20/0 dBu ( +6 dBu unbalanced )
MIC input gain
35 dB ( 223 dB analog, 12 dB digital )
Output level
+14 dBu
THD+N
0.005% @ 1kHz 0 dBu
S/N ratio
> 104 dBA
Frequency response
20 Hz ÷ 20.000 Hz ± 1dB
AD & DA converters
4 x AK5385B 24bit, 1 x AK4358 24bit (48 kHz)
Phantom power supply
48 Vdc
DSP & PROCESSING
DSP Engine
Dream SAM3716, 24 bit (data) x 96 bit (coeff.)
DSP Resolution
24 x 32 bit
Equalization | Input
3-band parametric (peaking or Low/High shelving)
Low/High pass 1st order filter per input channel
Equalization | Ouput
5-band parametric (peaking or Low/High shelving)
Equalization | Gain
From -12 dBu up to +12 dBu (0.5 dBu resolution steps)
Equalization | Frequency
1/24
th
of octave resolution (20 Hz steps)
Equalization | Q/BW
Q from 0.4 up to 10 (0.1 resolution steps)
Crossover section HPF/LPF
Butterworth 6/12/18/24dB per octave
Bussel, Linkwitz-Riley and Custom 12/24dB per octave
Filter resolution 1/24th of octave
RMS compressor and
peak limiter
Threshold from 14,2 dBu up to -33,8 dBu
Attack time from 5ms up to 200ms
(1 ms up to 20 ms, 10 ms up to 100 ms and 20 ms up to 200 ms)
Release time from 0.1 sec up to 3 sec (0.1 sec resolution)
Release time from 0.1 sec up to 3 sec (0.1 sec resolution)
Ratio from 1:1 to 32:1 (compressor only)
Adjustable soft or hard knee (compressor only)
Delay
380,998 ms (21 us steps)
Feedback eliminator
Pitch shifting algorithm only for MIC input channels
Automixing functions
N.O.M., Gain sharing and priority ducking algorithm
General informations
Device presets
6 user presets + 4 by using S1-S4 digital input ports.
Front panel
2Threshold from 14,2 dBu up to -33,8 dBu
6-LED status indicators (Line, Mic, Mute In, Signal/Clip, Mute Out)
1-LED indicator Phantom power
6 x double-function push buttons (Preset recall, Setup)
USB type B connector
Rear panel
2 x 12 pin Phoenix connector (Mic/Line inputs)
2 x 12 pin Phoenix connector (Line outputs)
2 x 4 pin Phoenix connector (S1-S4 digital input ports - TTL level 0-5V)
2 x 4 pin Phoenix connector (S1-S4 digital output ports - TTL level 0-5V)
2 x RJ45 for RS485 In/Out connection
1 x RJ45 with activity leds for Ethernet connection (10/100 TCP-IP)
IEC C13 16A connector power ON/OFF switch
Optional device

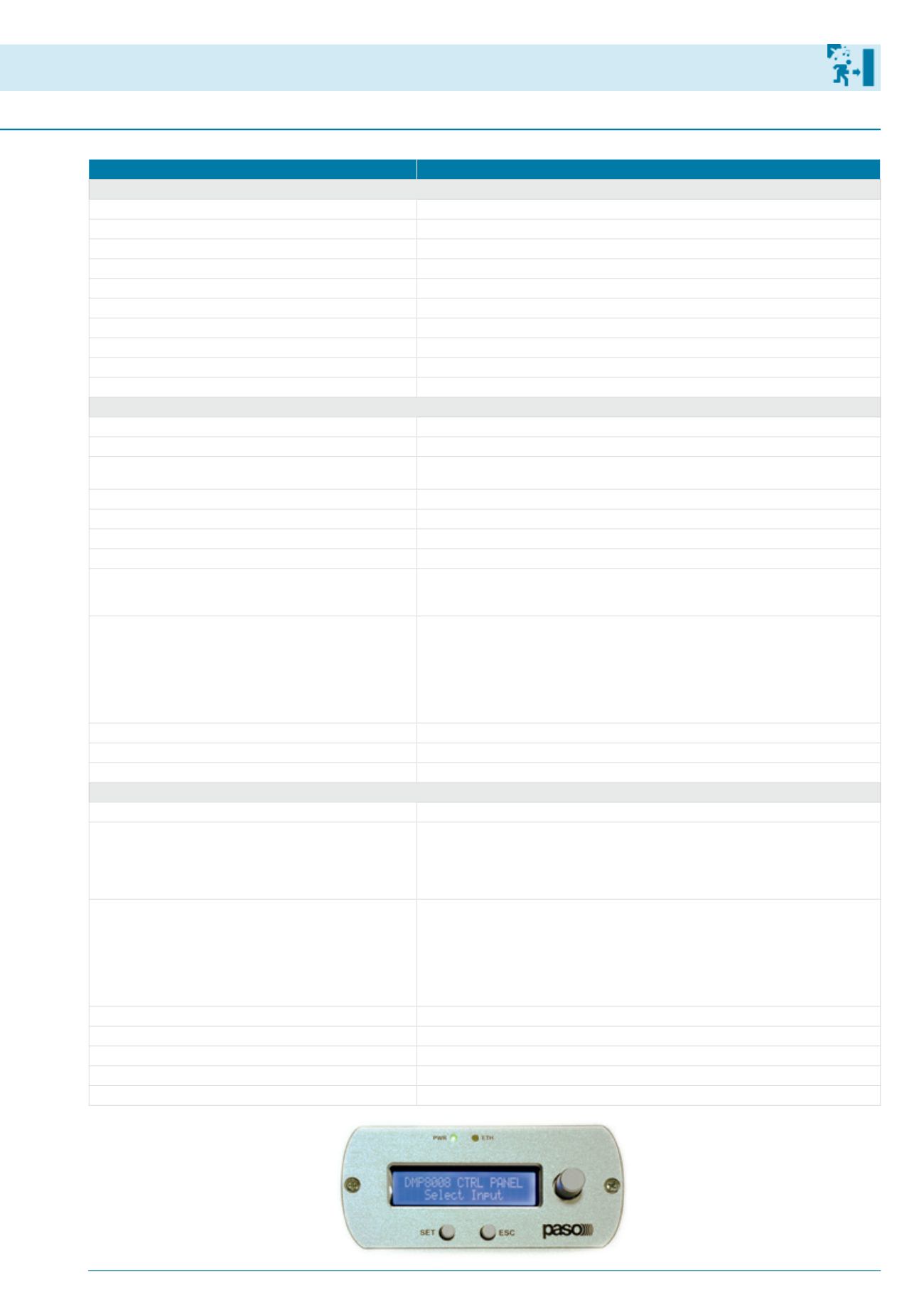

DMP8008 wall panel remote control
Included software
PC users interface; Free app. for iPad
®
Main AC
90 ÷ 240 Vac (50/60Hz) - 40W
Dimensions
482 x 44 x 229 mm - 1U
Net weight / Gross weight
3.5 kg / 4 kg
