34

AW5612

120 W RMS booster unit

AW5624

240 W RMS booster unit

¹

AW5648

480 W RMS booster unit

²

¹

EN54-16:2008 certificate nr.

0068-CPD-081/2011

dated 05 December 2011

²

EN54-16:2008 certificate nr.

0068-CPR-082/2013

dated 28 November 2013

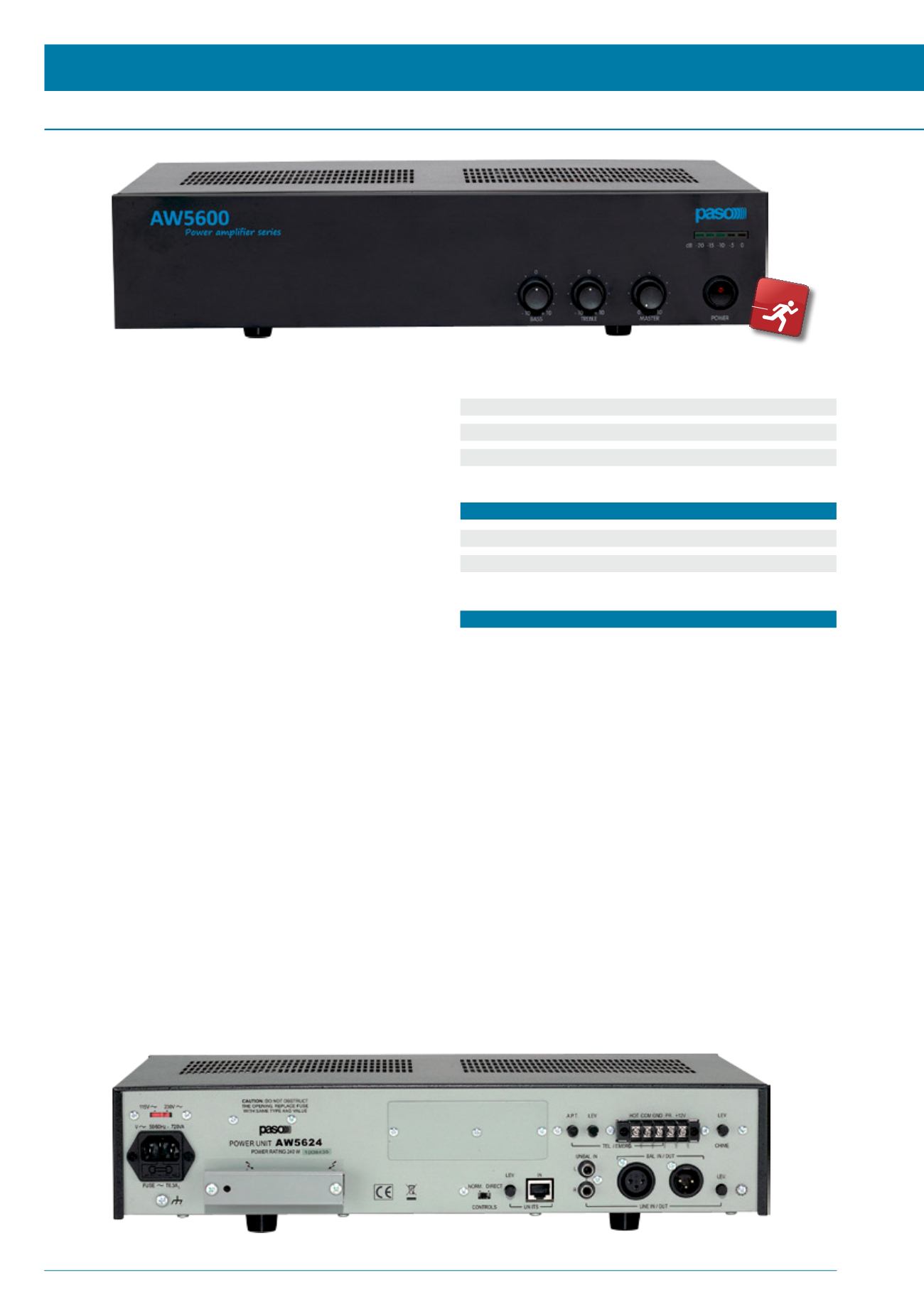

AW5600 range

|

Booster units

120 W, 240 W, 480 W RMS

Accessories

AC5660

Brackets for rack-mounting (2 U)

AC50

Lateral supporting brackets for rack-mounting

functional features

• Balanced line input/output (XLR-F and XLR-M sockets, with

adjustable sensitivity).

• Unbalanced line input (double RCA socket)

• B711-G microphone station input (RJ45 socket)

• Telephone/emergency audio input for priority calls with adjustable

threshold and sensitivity

• Front panel overall volume control and treble and bass controls

• Rear-panel selector switch for enabling/disabling front-panel tone

and volume controls

• Constant voltage (50/70/100 V) or 8 Ω impedance loudspeaker

line output.

• LED-type Vu meter for clear and immediate monitoring of output

power

• Contacts for activating precedence on line input

• Alerting signal (chime) with level control

• Selectable 230/115 Vac and 24 Vdc mains power supply

This is a new range of power units designed specifically for professio-

nal sound-broadcasting systems with service and emergency messa-

ges. Thanks to the great reliability of the protection circuits used, com-

bined with an attractive appearance and the very tough structures, the

AW5600

range constitutes the ideal product for quality amplification,

with a particularly interesting price/performance ratio.

Each amplifier of the

AW5600

range has an electronically balanced

line input/output with a double XLR socket, one female socket and

one male socket to facilitate connection of a number of boosters in

cascade fashion. To connect a source of sound directly, it is possible to

use a second unbalanced input by means of a double RCA socket for

using standard stereo cables.

All the boosters of this range have an RJ45 input for connection to

B711-G

pre-amplified microphone bases simply by means of SFTP

CAT.5E shielded cables. There is a special balanced input (TEL/

EMERG) with a transformer and automatic activation of precedence

(VOX) on the rear panel. Controls for adjusting the level and the activa-

tion threshold are present on the rear panel. This input can be used for

connecting the appropriate audio output of a telephone switchboard.

The AW5600 range has a large number of devices for protection

against overloads and short circuits (an output current peak-limiting

circuit, a thermal circuit-breaker inside the power transformer, a re-

settable thermal circuit-breaker in contact with the power-transistor

heat sink, mains fuses). In addition, each unit has a cooling fan, with

automatic control of the speed depending on the temperatures of the

heat sinks to which the power devices are applied.

EN54

16

EN54

24

EN54

16

EN54

24
