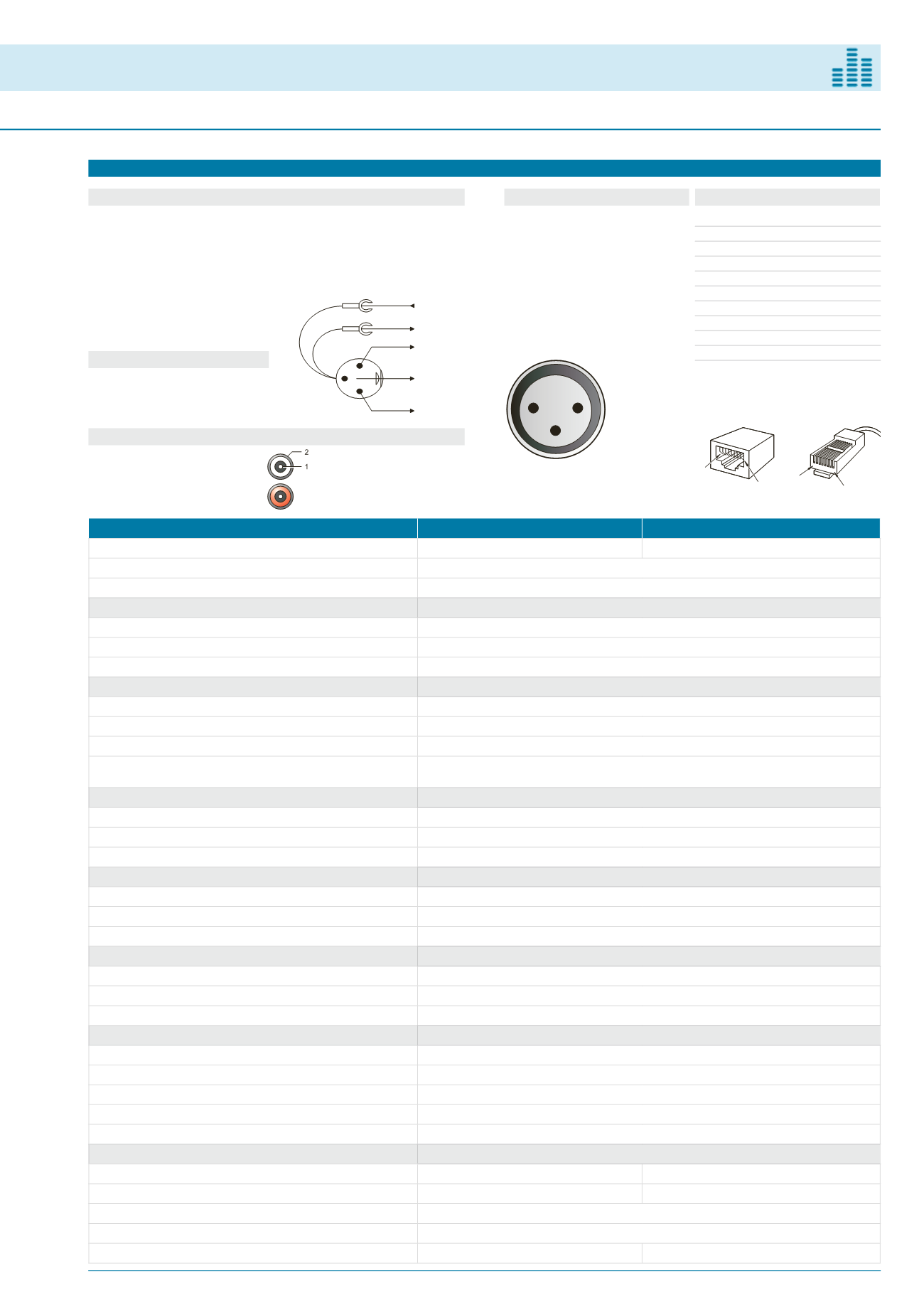

Microphone precedence and warning signal
When the precedence contacts (PR and +12V) on the rear terminal
block are closed, all the inputs except for MIC.1 and TEL./EMERG are
muted (it is in any case possible to use the micro-switches to program-
me the inputs to be muted and priority of the precedence contact).
Closing the contact generates a
two-tone warning signal (CHIME).
Auxiliary inputs (RCA)
UNBALANCED connection
1 Signal
2 Shield and GND
MODEL
AX6120
AX6240
Rated power output
120 W
240 W
Constant voltage outputs / Low impedance outputs
100-70-50 V and 8 Ω
Tones control
Bass ± 10 dB (100 Hz) ; Treble ± 10 dB (10 kHz)
Microphone inputs MIC.1 and MIC.2
2 balanced XLR (phantom supply 17,5 V), MIC1 with activation threshold (A.P.T.)
Sensitivity / Impedance
1,2 mV / 1300 Ω
S/N Ratio
> 66 dB
Frequency response
40 ÷ 19.000 Hz
Microphone input MIC.3/UNITS
Balanced XLR (phantom supply 17,5 V) / 1 RJ45 (PMB106-G base station unit)
Sensitivity / Impedance
MIC.: 1,2 mV / 1,5 kΩ ; UNITS: 900 mV / 47 kΩ
S/N Ratio
MIC.: > 66 dB ; UNITS: > 71 dB
Frequency response
MIC.: 40 ÷ 19.000 Hz – UNITS: 60 ÷ 15.000 Hz
Maximum number of microphone station units (PMB106-G)
Up to 16 stations in cascade fashion over a maximum distance of up to 1 km;
if necessary, the bases can be powered by means of their rear-panel sockets
Microphone inputs MIC./LINE 4 and 5
2 balanced XLR with Phantom/Mic/Line selection
Sensitivity / Impedance
MIC: 1,3 mV / 1300 Ω ; LINE: 140 mV / 130 kΩ
S/N Ratio
MIC: > 66 dB ; LINE: > 75 dB
Frequency response
MIC: 35 ÷ 17.000 Hz ; LINE: 30 ÷ 20.000 Hz
Auxiliary inputs
2 RCA (CD + TAPE)
Sensitivity / Impedance
CD: 600 mV / 35 kΩ ; TAPE: 300 mV / 18 kΩ
S/N Ratio
> 80 dB
Frequency response
30 ÷ 20.000 Hz
Telephone / Emergency (TEL / EMERG) audio input
Balanced with terminals (HOT-COM-GND) with activation threshold adjustment
Sensitivity / Impedance
120 mV / 5,5 kΩ
S/N Ratio
> 80 dB
Frequency response
250 ÷ 20.000 Hz
Line signal outputs
5
LINE OUT
XLR balanced 1,3 V / 4 kΩ
PRE OUT
1 RCA 1 V / 3,7 kΩ
TAPE OUT
2 RCA 1,2 V / 2 kΩ
Music On Hold (MOH) - PRE-AMPLIFIED LINE
terminals (HOT-COM) 2,6 V - 300 Ω
Music On Hold (MOH) - AMPLIFIED LINE
terminals (GND-MON) 1 W – 8 Ω
Mains power supply
230/115 Vac - 50/60 Hz / 24 Vdc
Maximum consumption
280 W (325 VA)
530 W (600 VA)
24 Vdc current consumption (max power / with no signal)
6,9 A / 0,3 A
13 A / 0,3 A
19" rack mounting (modular units)
Optional AC5660 brackets with recommended AC50 supports (2U)
Dimensions (W x H x D)
432 x 88 x 360 mm
Weight
9,5 kg
11,8 kg
2
3
1
Bianco
+ 12V
Verde
PREC .
SIGNAL +
SHIELD
SIGNAL –
White
Green
Microphone inputs (XLR)
BALANCED connection
1 Shield
2 Signal (hot side)
3 Signal (cold side)
UNBALANCED connection
1 Shield and GND
2 Signal
3 Shield and GND
Pin
Description
1
Audio +
2
Audio -
3
GND
4
Not connected
5
Not connected
6
+ Vdc
7
Serial +
8
Serial -
Schermo
GND
CONNECTIONS
UNITS input (RJ45)
All the connectors must be
shielded RJ45 type.
1 2
3
87654321
Pin 8
Pin 1
12345678
Pin 1
Pin 8
Microphone base B701-MG
