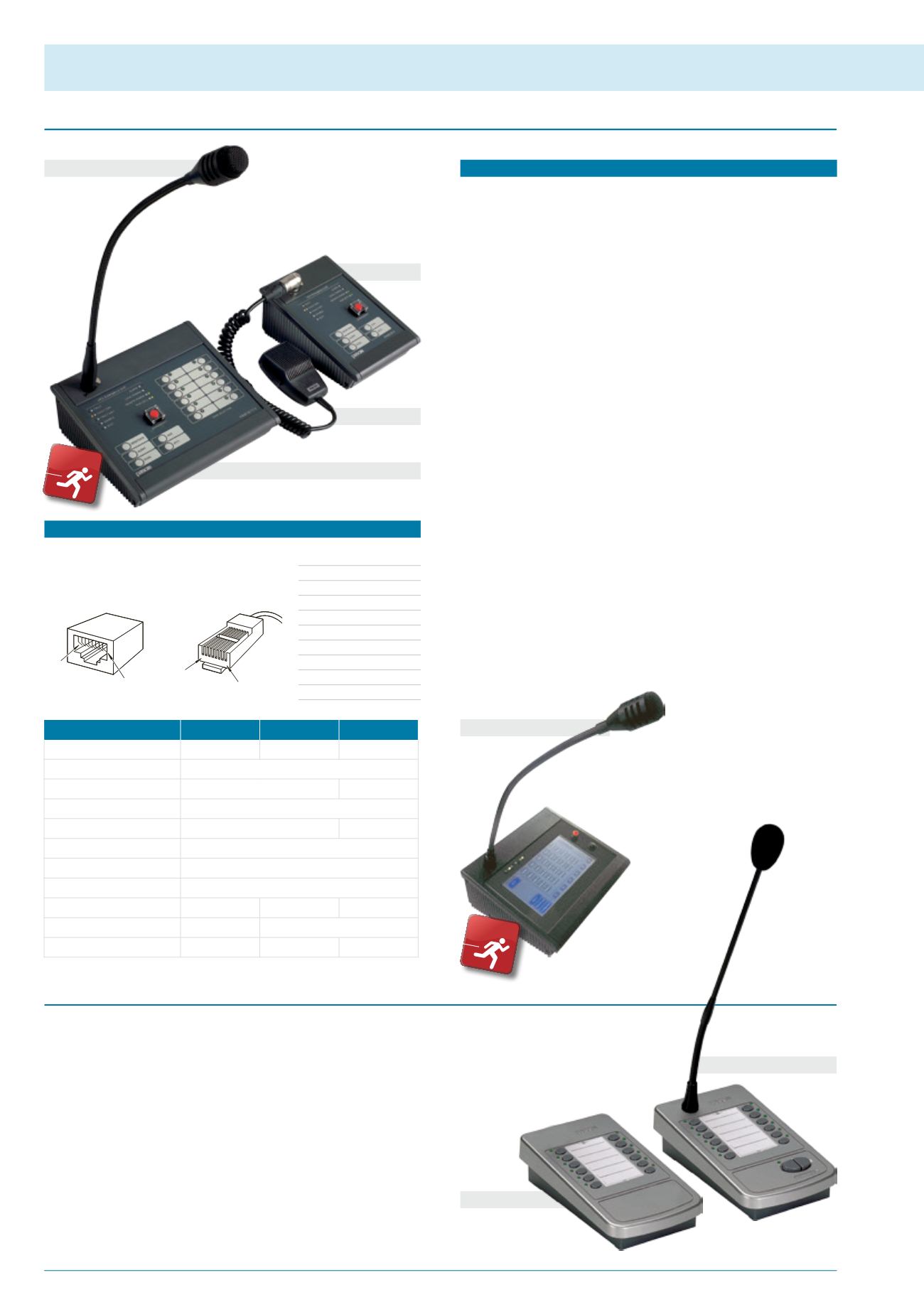

PMB132 range • TSB8500-V • Emergency Paging Units
PA8500-VES
|
Voice Evacuation System
PMB112-G
Broadcasting Paging Units
functional features
• Fully monitored
• Emergency key
• Live emergency calls
• Sending of pre-recorded Evacuation/Alert messages
• Broadcast calls
• Zone-selection keys with status-LEDs (PMB132/12-V only)
• Faults/Failures LEDs
• AUX function to call pre-set messages
• Reset of emergency messages
• Muting of the buzzer for failure detection (ACK)
The remote consoles
PMB132/12-V
and
PMB132-V
are fully moni-
tored, and allow greater operational and management flexibility for any
service and/or emergency calls and/or prerecorded messages on the
zones of the system. The LEDs on the front panel provide the main in-
formation on the status of the emergency system and on any failures.
The
PMB132-V
station enables a single All-Call to be made; if the
alarm messages have to be sent to separate zones, on the other hand,
it will be necessary to use the
PMB132/12-V
station, which enables
a maximum of 12 zones to be selected. The
TSB8500-V
emergency
station combines all the features of the
PMB132
range with a 7”
touch screen back-lighted display for zone selection, which allows an
easy and quick configuration of the unit. Six function keys are available
to set group of zones. Each station must be completed with an additio-
nal microphone to be chosen from among the following models:
•
MC132-V
Dynamic gooseneck microphone
•
M132-V
Dynamic hand-held microphone with P.T.T. key
Standard paging units can be used in the
PASO
Voice Evacuation Sy-
stems. The units are connected to one another in cascade formation,
and the connecting cables (CAT5e SF/UTP) carry both the analogue
audio signal and the digital signal for the controls and station addres-
ses.
The
PMB106-G
call station can make selective calls to up to a
maximum number of 6 zones and the
PMB112-G
up to 12. The
PMB112-EG
extension module enables 12 programmable shortcut
keys for one or more functions to be added. It is possible to connect up
to two expansion modules to the
PMB112-G
.
MC132-V
M132-V
PMB132-V
PMB132/12-V
MODEL
PMB132-V
PMB132/12-V
TSB8500-V
N° of zone selectable
-
12
1 ÷ 216
Typical output level
300 mV
Frequency response
130 ÷ 19.000 Hz
20 ÷ 20.000 Hz
Distortion
< 1%
LOW CUT filter
-3 dB / 380 Hz
-10 dB / 100 Hz
S/N ratio
> 60 dB
Connections
RJ45 (IN/OUT)
Power supply voltage
24 Vdc
Maximum absorption @24Vdc
60 mA
130 mA
165 mA
Dimensions (W x H x D)
140 x 80 x 200 mm
230 x 80 x 200 m
Net weight
0,77 kg
1,55 Kg
1,6 Kg
PMB112-EG
TSB8500-V
CONNEctions
Pin
Description
1
Audio +
2
Audio -
3 GND
4
Not connected
5
Not connected
6 + Vdc
7
Serial +
8
Serial -
Shield GND
8 7 6 5 4 3 2 1
Pin 8
Pin 1
1 2 3 4 5 6 7 8
Pin 1
Pin 8
The connections to these emergency stations are made
by means SFTP CAT5E shielded cable and RJ45 shiel-
ded connectors.
